Get to Know Your Vehicle
Take a few minutes to gather these four measurements

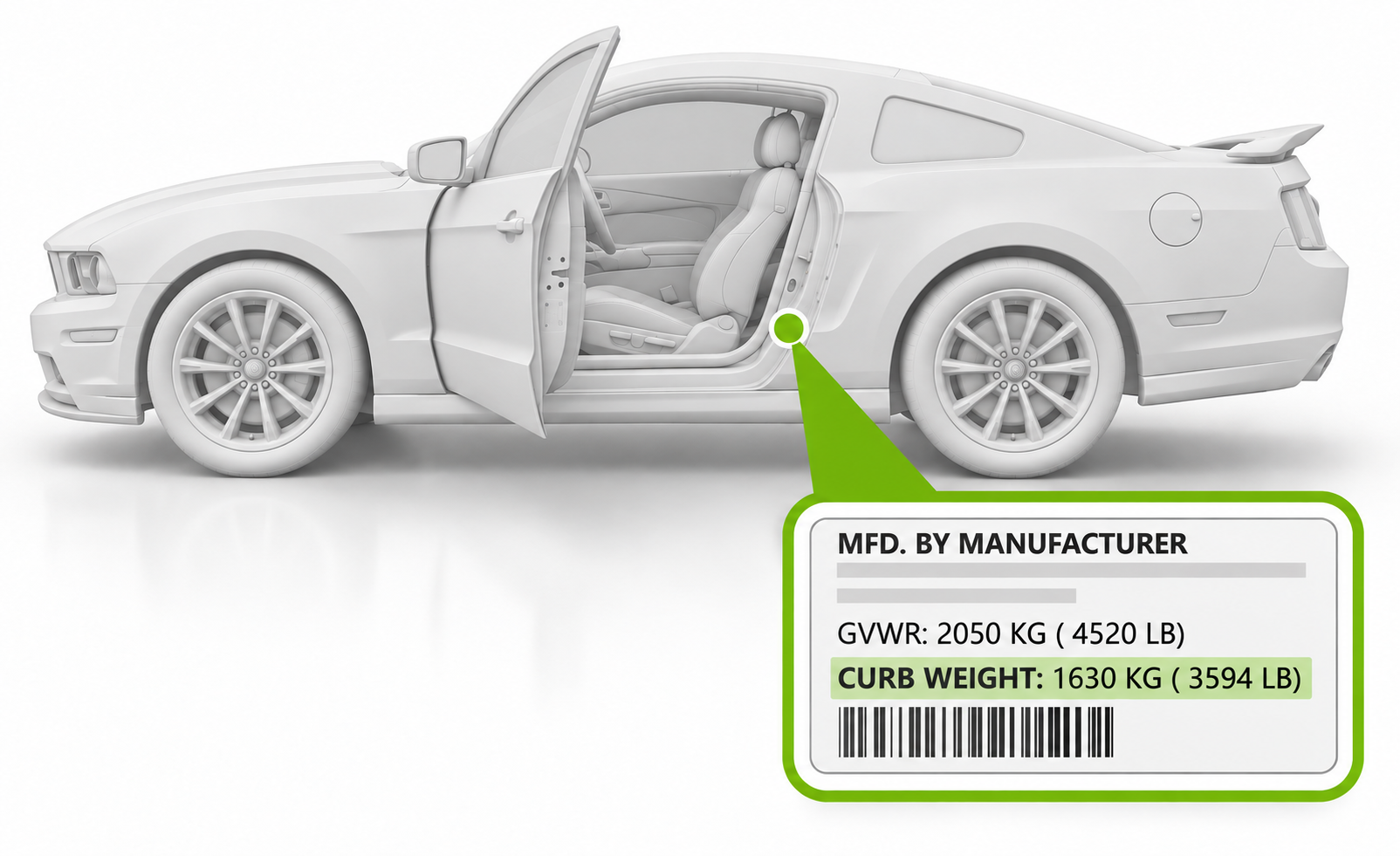

A: Locate Vehicle Curb Weight
You can find your vehicle’s curb weight either on the driver’s side door, in the owner’s manual, or online.
What is curb weight?
Curb weight is the weight of the vehicle with standard equipment, full fluids, and no passengers or cargo.

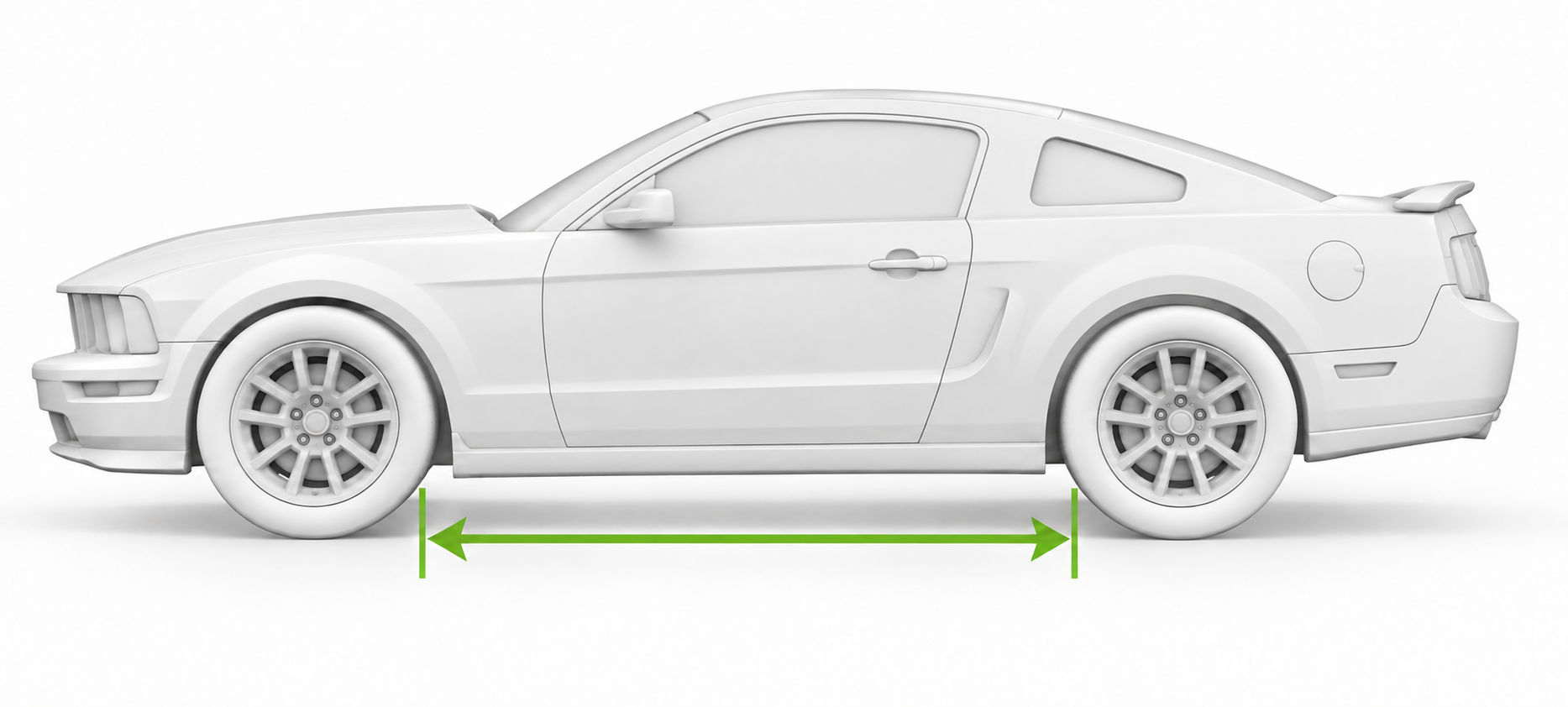

B: Measure the Tire Spread
Step 1 — Measure the distance between your front and rear tire treads, keeping the measurement 3" above the ground.
Step 2 — Subtract 2" from the measurement in Step 1.
The result is your Tire Spread Measurement (Measurement B).

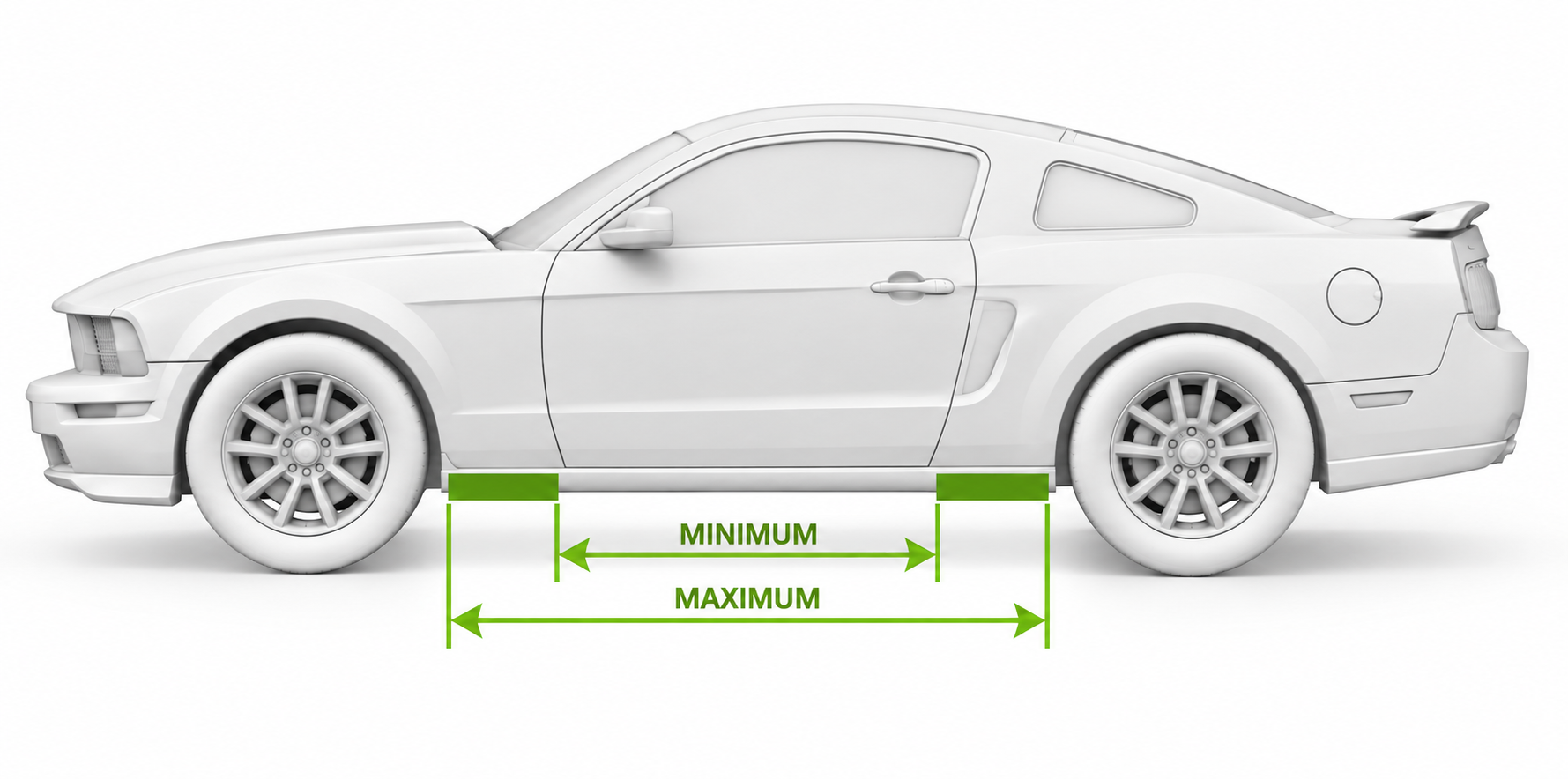

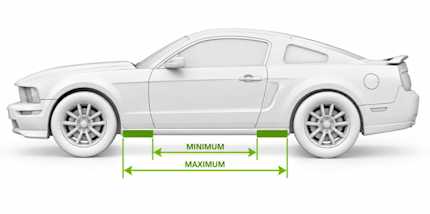

C: Lift Point Spread (Min/Max)
Step 1 — Measure from the inside of one jacking point to the inside of the opposite jacking point. This is your Minimum Lifting Point Spread.
Step 2 — Measure from the outside of one jacking point to the outside of the opposite jacking point. This is your Maximum Lifting Point Spread.
These two measurements become your Lifting Point Spread (Measurement C).

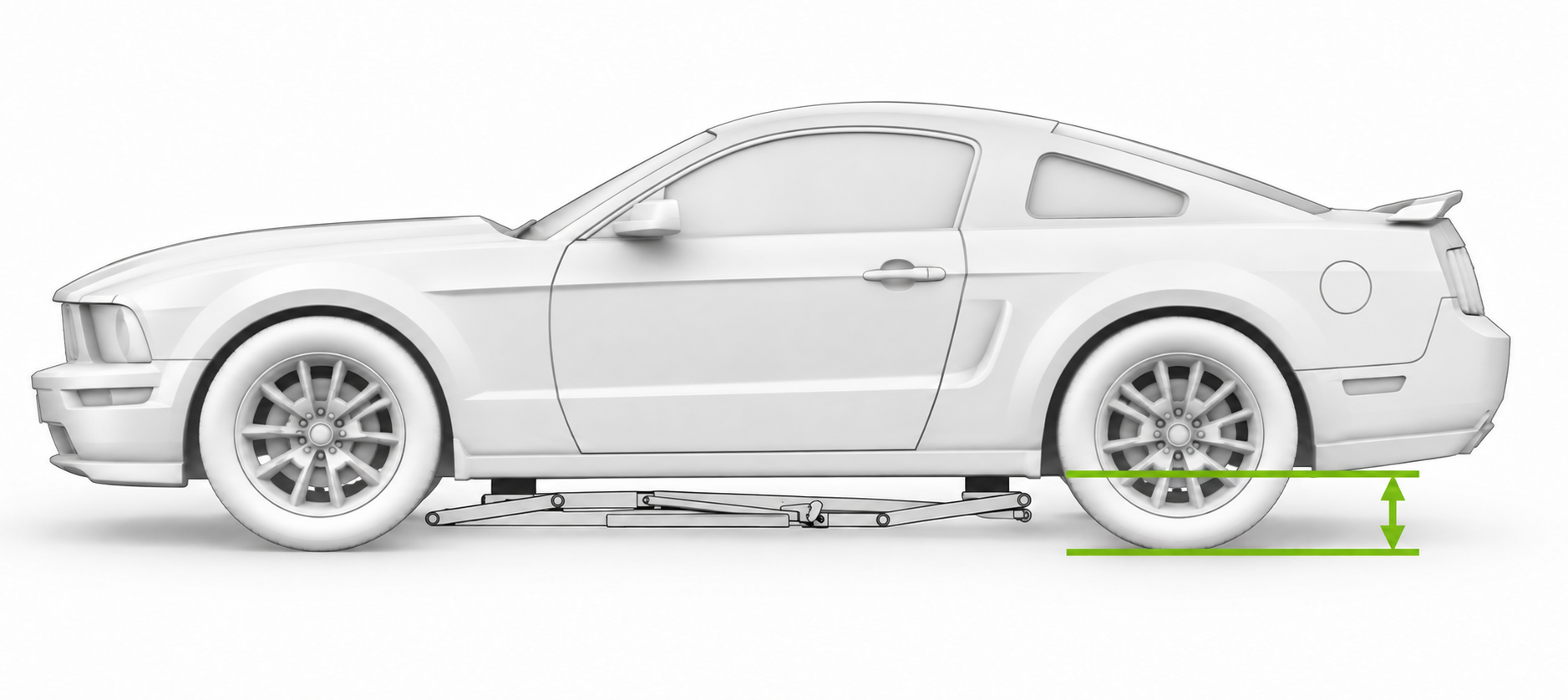

Ground Clearance
Measure the distance between the ground and a lifting point.
This is your Ground Clearance measurement (Measurement D).
Important
There must be some space between QuickJack and your vehicle’s lifting points. If your car's lift points are resting flush on a fully lowered QuickJack, the frames will be unable to generate enough force to lift the vehicle.
Determining the Right Model
Now that you have your four measurements, match them with the specifications below to determine which QuickJack models fit your vehicle.
| A — Curb Weight | B — Tire Spread | C — Lifting Point Spread | D — Ground Clearance | Model |
|---|---|---|---|---|
| ≤ 3,500 lbs. | ≥ 62.5" | 27" min — 50.5" max | ≥ 3.5" | 3500SLX |
| ≤ 6,000 lbs. | ≥ 70" | 37" min — 60" max | ≥ 3.5" | 6000TL |
| ≤ 6,000 lbs. | ≥ 76" | 43" min — 66" max | ≥ 3.5" | 6000TLX |
| ≤ 8,000 lbs. | ≥ 70.75" | 37" min — 60" max | ≥ 4" | 8000TL |
| ≤ 8,000 lbs. | ≥ 76" | 43" min — 66" max | ≥ 4" | 8000TLX |
| ≤ 6,000 lbs. | ≥ 86.5" | 53" min — 76" max | ≥ 4" | 6000ELX |
≤ less than or equal to | ≥ greater than or equal to
Ready to Find the Right QuickJack?
Now that you know how to properly measure your vehicle, you’re ready to find the QuickJack that fits your needs. Taking a few minutes to confirm your vehicle’s lift point spread, wheelbase, and weight can help ensure you choose the right model the first time.
Every vehicle is different, so don’t guess. Compare your measurements with the specifications for each QuickJack model before making your selection. If you still have questions, our team is here to help you find the right setup for your vehicle.
Measurements checked? You’re ready to find your QuickJack.
